ARCA-SWISS Monoball Z1+ SP Classic
Arca Swiss Monoball Z1+ SP Classic
Camera Not Included

Alternative Views:

On Display In Store
Our Price: $422.00
MFR#: 801103

Stock Status: In stock

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 58299

Description Technical Specs

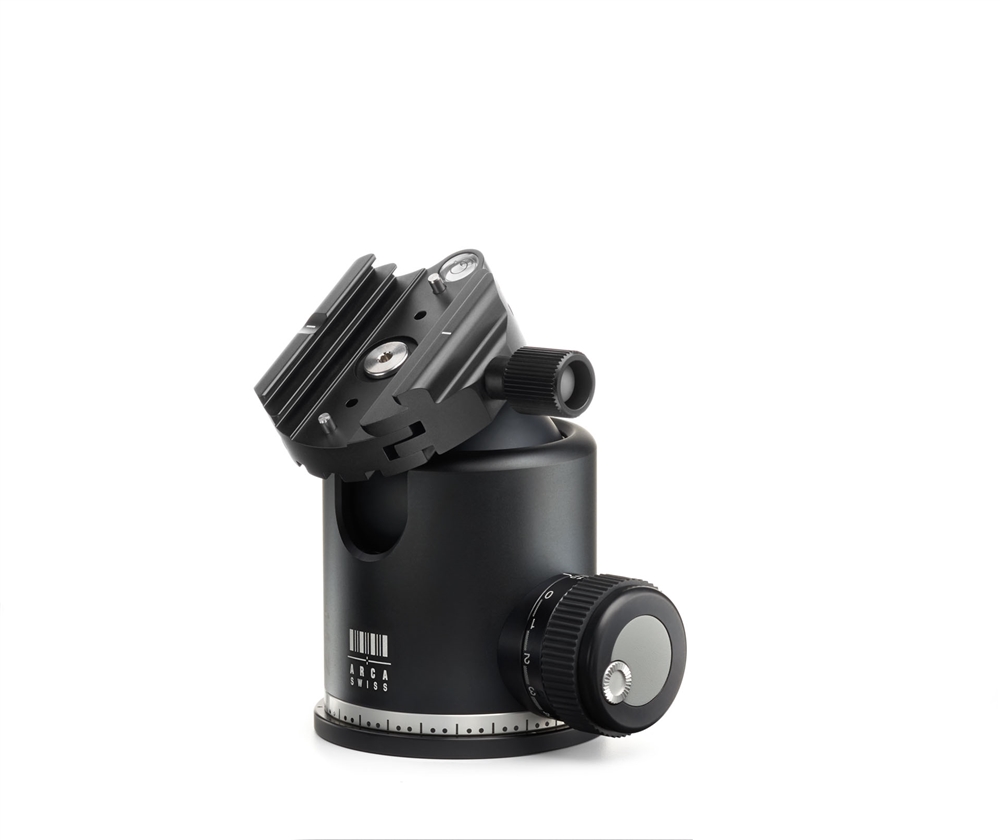

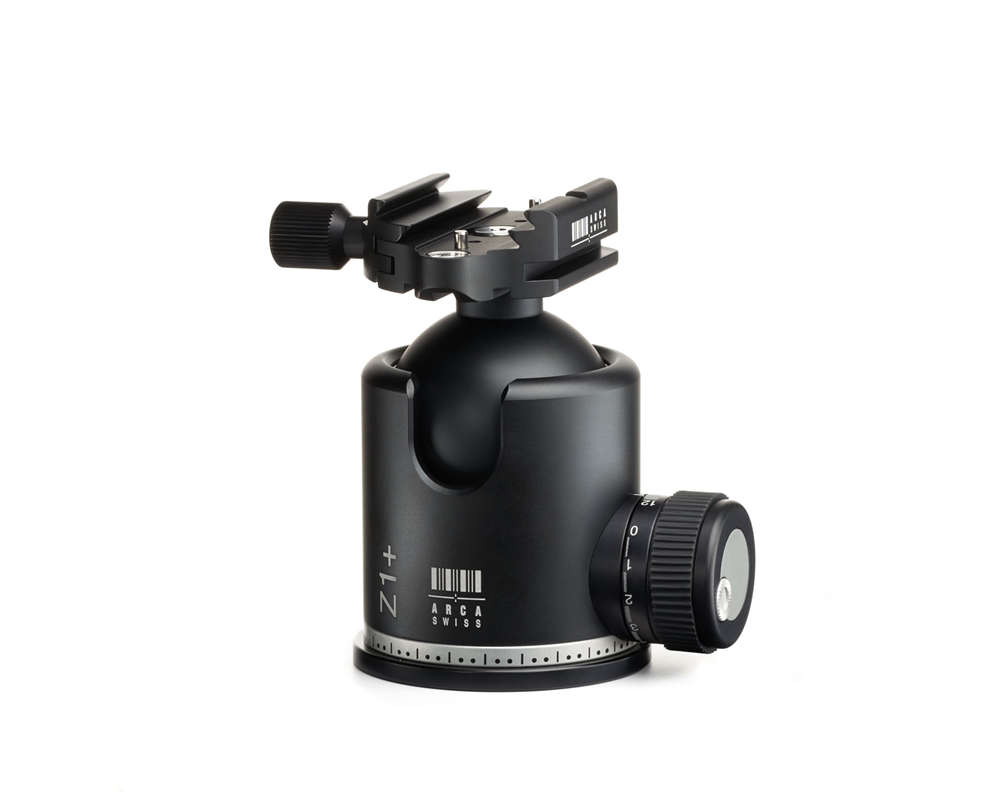

ARCA-SWISS monoball® Z1+:
The pioneering and legendary monoball® B has contributed to the worldwide reputation and fame of ARCA-SWISS since 1964. It has been constantly refined and improved since it was first produced and replaced by the new monoball® Z1+ which benefits from the last material and technology improvements. It is available in a giant version, the monoball Z1g+, for supporting very heavy loads.

Lighter and stronger as ever:
The monoball® Z1+ is machined from solid, aeronautical-grade aluminium for robustness and rigidity. It can carry a load of more than 60 kg (132 lb.) yet is remarkably light, at about 700 g (1.54 lb.).

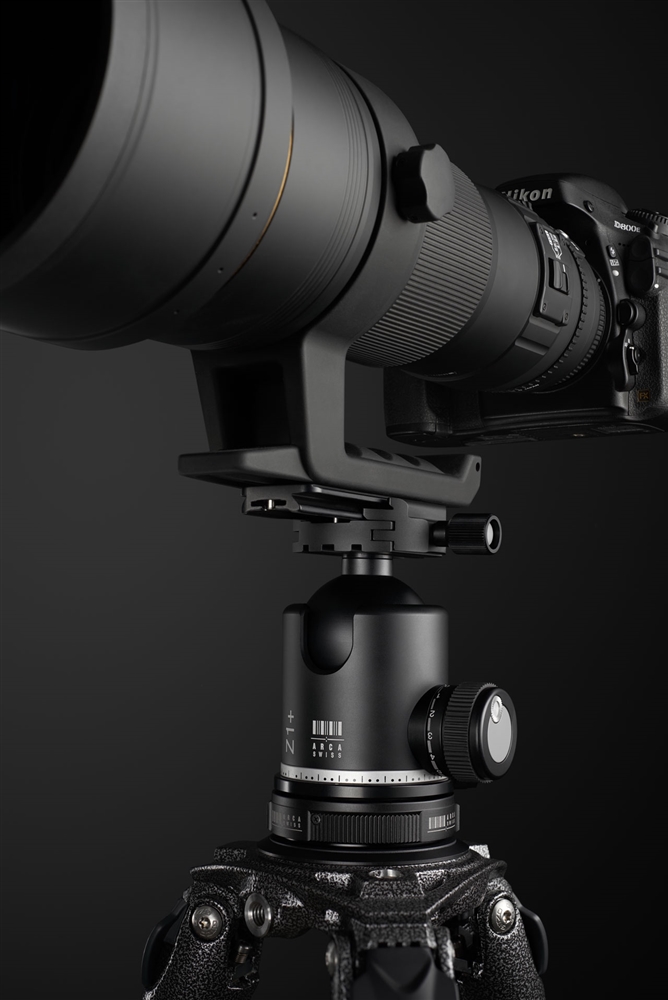

It is recommended to be used with heavy cameras or telephoto lenses.

Movements under control:
The movement of the monoball® Z1+ is incredibily smooth. The patented aspherical ball of the monoball® Z1+ is a guarantee of safety: the greater the inclination, the greater the friction. There is no longer any risk of the camera suddenly tipping. The friction control system allows the level of friction required for movement of the ball to be set and held at a desired value. This function offers a further measure of security and allows the photographer to set a desired level of smoothness of movement as a function of the weight of the camera and of the conditions required for a given series of images.

90° Tilt:
A recess in the body of the ball head allows 90° rotation for movement from landscape to portrait format. Combined with an upper lockable panning mechanism overhead or downward views can also be achieved.

360° panning:
A bottom, lockable panning mechanism with a graduated scale fitted to the underside of the ball head allows rapid alignment of the camera with the subject.
As an option, a top panning mechanism is available with the monoball® Z1+ dp (double panning)

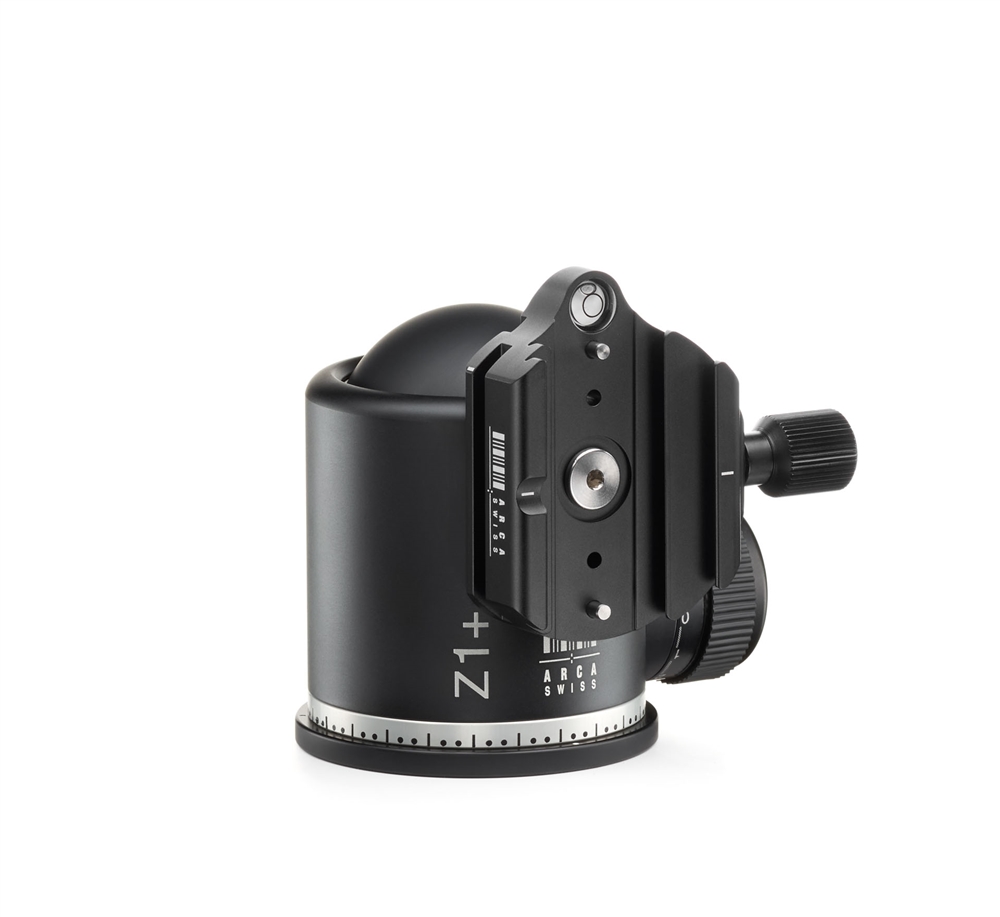

Classic quick-release:
The Classic quick-release has two channels, which make it compatible with Classic ARCA-SWISS plates (the most widely used) as well as plates made to the new, narrower & lighter monoball®Fix standard.

When used with monoball®Fix plates, two pins on its base prevent any unintended slippage of the camera.

Tightening is done by a simple screw knob with which the photographer can ensure the camera is properly and securely fixed in position. It is equipped with a target bubble level to visualize levelling.

We recommend the use of original ARCA-SWISS plates, but the Classic quick- release is also compatible with different plates made to ARCA-SWISS Classic standards, although tolerances may vary between brands.

Arca Swiss Monoball Z1+ SP Classic
